Lung ultrasound artifacts: A lines, B lines, Z lines, and E lines

Clinicians sometimes say ‘air is the enemy of ultrasound’. Historically, clinicians avoided scanning the lungs, as air scatters ultrasound beams, resulting in artifacts and the inability to directly visualize lung tissue. However, astute clinicians quickly realized that artifacts can be a clue to important lung diseases. The diagnostic prowess of lung ultrasound has led to its adoption as a first-line tool for modern clinicians. So what are the core lung ultrasound artifacts we need to know? Let’s dive into A lines, B lines, Z lines and E lines!

A Lines

What are A lines?

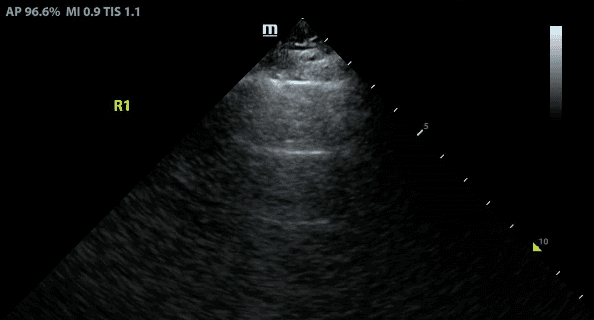

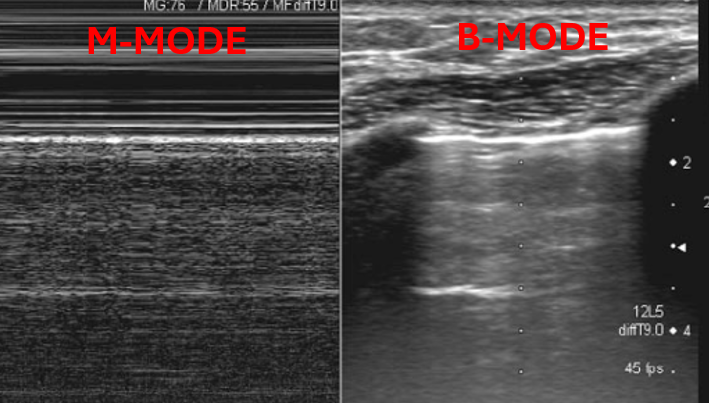

A lines are hyperechoic (ie. bright) horizontal lines that occur equidistant from the pleural line.

Why do A lines occur?

A lines are created by repetitive reflections between the pleural line and the ultrasound probe.

How do you bring out A lines?

A lines are best seen when the transducer is positioned perpendicular to the lung surface. If you are unable to visualize them, you should tilt, rock or slide the probe to align the probe perpendicular to the curved lung.

What do the presence of A lines imply?

The presence of A lines reflects normal lung (ie. lung that does not have pathology such as consolidation, pleural effusion or interstitial syndrome).

Note that A lines are still seen in pneumothorax.

B lines

What are B lines?

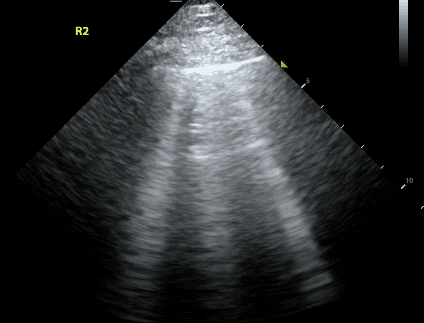

B lines are vertical hyperechoic artifacts originating from the pleural line that look similar to comet-tails. The artifact that generates B lines is the ‘ring down’ artifact.

Why do B lines occur?

B lines occur due to thickening of the interlobular septa, which are sheet-like structures that surround pulmonary lobules. Thickening can be due to fluid (eg. pulmonary edema, pulmonary hemorrhage), collagen fibrous tissue, or cells (eg. interstitial lung disease, sarcoidosis).

What are the 5 criteria of B lines?

1. Ray-like, hyperechoic, vertical and discrete
2. Arise from the pleural line (never above)
3. Move with lung sliding
4. Extend to the bottom of the screen
5. Obscure A lines

When are B lines considered pathologic?

B lines are considered pathologic when there are three or more B lines in one rib space.

For a deeper dive into B lines, refer to our subsequent blog post here

Z lines

What are Z lines?

Z lines are hyperechoic lines extending from the pleural line that can sometimes be mistaken for B line but are a common finding in normal lungs. There is no clinical significance to Z lines.

How do you differentiate Z lines from B lines?

1. They usually dissipate after 2-4cm and thus, do not extend to the bottom of the screen
2. They are not as discrete as B lines
3. They do not move with the pleural lines
4. They are less echogenic than the pleural line
5. They do not erase A lines

E Lines

What are E lines?

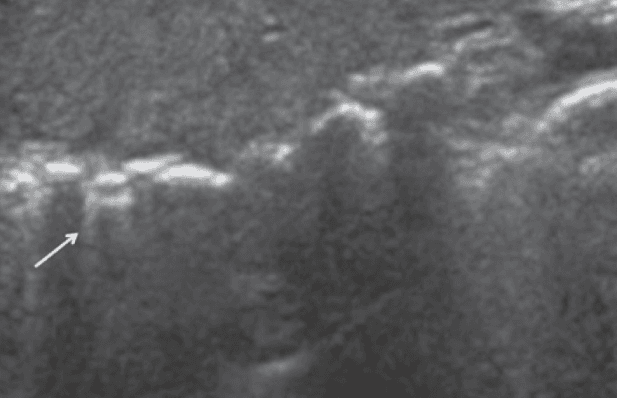

E lines are hyperechoic lines originating from air in the subcutaneous tissue that can sometimes be mistaken for B lines. One important feature of E lines is that they do not originate from the pleural line. Their presence may obscure adequate visualization of the pleural line.

Conclusion

Lung ultrasound has excellent diagnostic accuracy for a host of pulmonary pathology and its accurate interpretation requires an understanding of the most common lung ultrasound artifacts. For a more in depth dive, check out some of the references below and the Western Sono screencast on lung ultrasound found here.
